 设备 >> 制氮、制氧设备 >> 医药行业PSA制氮设备、Pharmaceutical industry, PSA nitrogen plant


产品编号:
8260501616
产品名称:

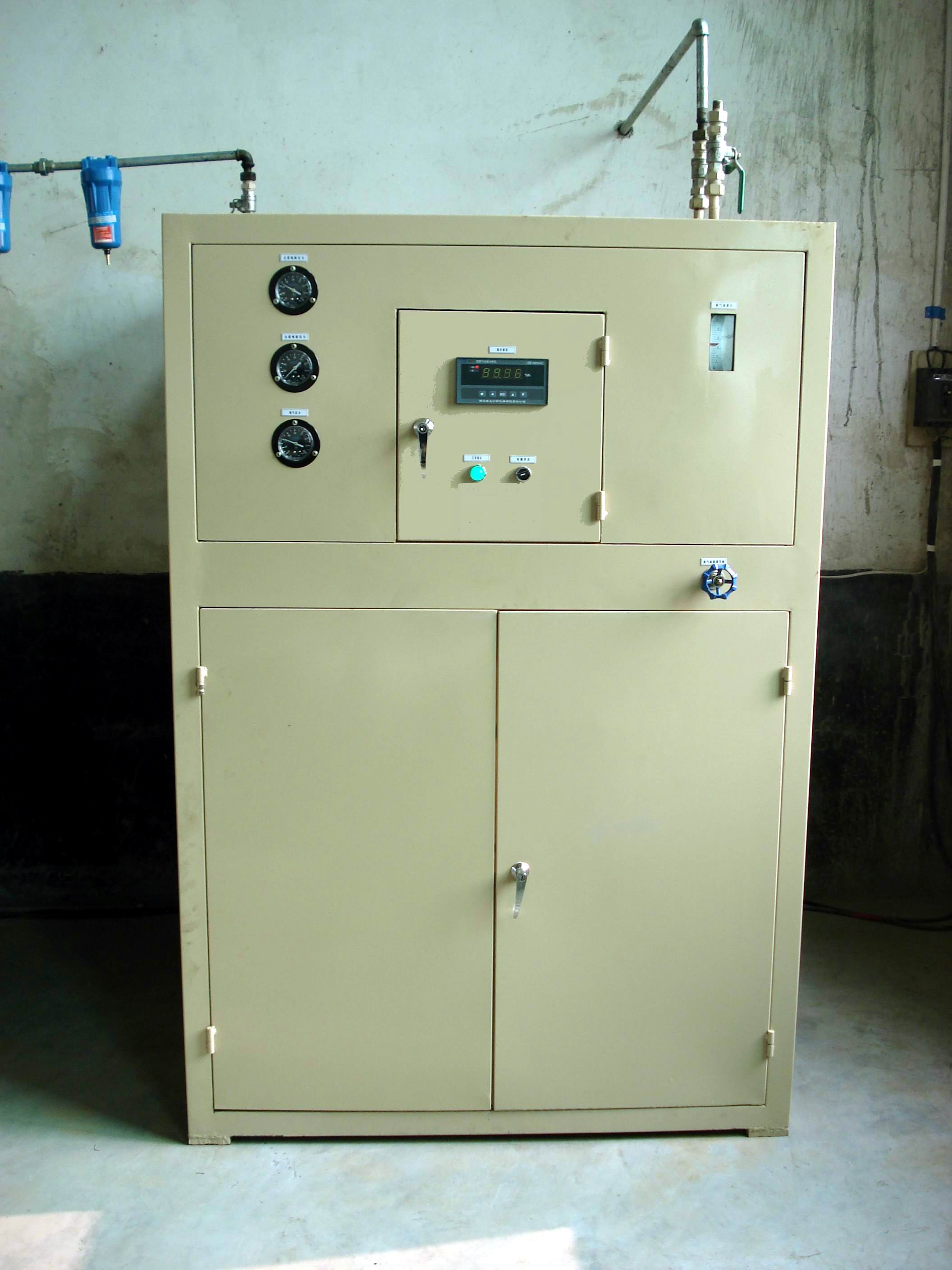

医药行业PSA制氮设备、Pharmaceutical industry, PSA nitrogen plant
规  格:
2-200M3/h
产品备注:
根据用户的实际需要,进行科学合理的设计、生产,管道布局漂亮美观、According to the actual needs of users, scientif
产品类别:
设备

产品说明

说明:
制取纯度为99.99%的氮气,成品气氧含量小于0.01%,露点小于-60℃,出口压力在0.2~0.65Mpa之间可调。
技术参数:

 1、产气量:≥2-200Nm3/h
 2、产品气纯度:≥99.99%
 3、出口压力:0.2~0.65Mpa可调
 4、产品气露点:≤-60℃

设备构成:
1、空气压缩机
2、预过滤器
3、冷冻干燥机
4、过滤器
5、变压吸附制氮机
6、储气罐
7、配套仪器仪表

 工艺流程:
3、1 -PSA制氮工作原理

用碳分子筛制氮主要是基于氧和氮在碳分子筛中的扩散速率不同,在0.7-1.0Mpa压力下,即氧在碳分子筛表面的扩散速度大于氮的扩散速度,使碳分子筛优先吸附氧,而氮大部分富集于不吸附相中。碳分子筛本身具有加压时对氧的吸附容量增加,减压时对氧的吸附量减少的特性。利用这种特性采用变压吸附法进行氧、氮分离。从而得到98%—99.99%的氮气。医用行业设有高精度、滤菌过滤器(精度0.01?),从而达到无菌目的,产出无菌氮气,供医用行业使用。
3、2-流程简述
来自空气压缩机的压缩空气,首先进入冷干机脱除水分,然后进入由两台吸附塔组成的PSA制氮装置,利用塔中装填的专用碳分子筛吸附剂选择性地吸附掉O2、CO2等杂质气体组分,而作为产品气N2将以98%—99.99%的纯度由塔顶排出。
在降压时,吸附剂吸附的氧气解吸出来,通过塔底逆放排出,经吹洗后,吸附剂得以再生。完成再生后的吸附剂经均压升压和产品升压后又可转入吸附。两塔交替使用,达到连续分离空气制取氮气的目的。高精度、滤菌过滤器(精度0.01?),从而达到无菌目的,产出无菌氮气使用。
3、3装置特点
⑴、 性能可靠:所有设备材质、仪表和控制器件都选用国内外著名厂商产品。
⑵、 成本低:产20Nm3/h 99.5% N2气,此时空气耗量为90Nm3/h。
⑶、 寿命长:吸附塔、氮气灌、管路、阀门等与氮气直接接触的部位均采用不锈钢材质,符合GMP标准,优质BF碳分子筛、宝德气动阀可保证整个装置无故障时间延长。
⑷、 装置紧凑,占地面积小: 因设备结构简单无须建造专用厂房,工程建设投资省。
⑸、 操作简单、PLC控制可实现无人操作。



Explanation:
Preparation of a purity of 99.99% nitrogen product gas oxygen content is less than 0.01%, less than a dew point of -60 ℃, outlet pressure adjustable between 0.2 ~ 0.65Mpa.
Technical Parameters:

 1, gas production: ≥2-200Nm3 / h
 2, the product gas purity: ≥99.99%
 3, the outlet pressure: 0.2 ~ 0.65Mpa adjustable
 4, product gas dew point: ≤-60 ℃

Equipment components:
1, the air compressor
2, pre-filter
3, freeze dryer
4, the filter
5, PSA Nitrogen
6, gas tank
7, supporting instrumentation

 Process:
3,1 -PSA nitrogen works

Nitrogen carbon molecular sieve is mainly based on the diffusion rate of oxygen and nitrogen in the carbon molecular sieve different, 0.7-1.0Mpa under pressure, that is the rate of diffusion of oxygen in the carbon molecular sieve surface is greater than the rate of diffusion of nitrogen, carbon molecular sieves preferentially adsorb oxygen, The most enriched in nitrogen is not adsorbed phase. Having pressurized oxygen adsorption capacity increased carbon molecular sieve itself, when the amount of oxygen adsorption pressure reducing properties. With this feature the use of pressure swing adsorption oxygen, nitrogen separation. To give 98% -99.99% nitrogen. The medical profession has a high-precision, filter bacteria filter (precision 0.01?), So as to achieve the purpose of sterile, sterile nitrogen output for the medical industries.
3,2 Process Description
Compressed air from the compressor, the first to enter the dryer to remove moisture, and then enter the PSA nitrogen adsorption device consists of two towers, the use of special carbon molecular sieve adsorbent packed column to selectively adsorb off O2, CO2, etc. impurity gas component, and the N2 gas as the product will be 98% -99.99% pure discharged from the top.
When blood pressure, oxygen adsorbent is desorbed by reverse bottom discharge discharged by purging the adsorbent is regenerated. After the completion of the regeneration of the adsorbent by equalizing boost and boost product then can be transferred to adsorption. Two towers used to achieve the purpose of continuous air separation system to take nitrogen. Precision, filter bacteria filter (precision 0.01?), So as to achieve the purpose of sterile, sterile nitrogen output use.
3,3 Device characteristics
⑴, performance and reliability: all equipment, materials, instrumentation and control devices are selected domestic and international famous manufacturers products.
⑵, low cost: production 20Nm3 / h 99.5% N2 gas, when the air consumption of 90Nm3 / h.
⑶, long life: direct contact with parts of nitrogen adsorption towers, nitrogen filling, piping, valves, etc. are made of stainless steel, meet the GMP standard, high-quality carbon molecular sieve BF, Proudly pneumatic valve ensures that the entire device failures longer.
⑷, the device is compact, small footprint: Due to simple structure without special plant construction, construction investment.
⑸, simple operation, PLC control can realize unmanned operation.





点击数:4667  录入时间:2009/8/26 【打印此页】 【关闭
