Z204型转化催化剂是以镍为活性组份，氧化铝为主要载体的二段转化催化剂。主要适用于以气态烃为原料的合成氨厂二段转化炉、制氢装置及氨分解装置。长期使用实践证明该产品性能稳定、活性好、强度高。
（二）特性

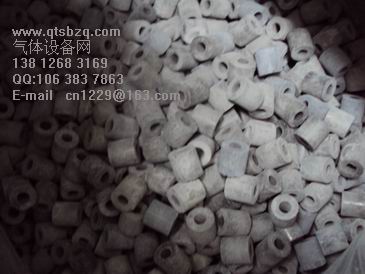

1 、外观及尺寸：瓦灰色拉西环状
2 、几何尺寸（外径×高×内径）：
19 × 19 × 9
3 、堆密度： Kg/L
1.10~1.15
4 、化学组份， % （ mm ）
NiO ≥ 14.00 ； SiO 2≤ 0.20
5 、颗粒径向抗压碎强度（平均值）， N/ 颗 ≥ 450
（三）包装与贮运
催化剂产品包装采用能防潮、防污染的白色塑料桶，每桶净重为 50Kg 。桶外印有名称、型号、规格、重量 (kg) 、生产厂名等明显标志，包装桶内附有产品质量合格证。运输中应防潮、防碰撞跌落，禁止滚动搬运。产品应贮存于干燥的仓库内
Z204 type reforming catalyst is nickel as the active ingredient, aluminum oxide as the main carrier of the secondary reforming catalyst. Sec mainly applied to the ammonia plant in gaseous hydrocarbon feedstock reformer, ammonia decomposition of hydrogen plant and equipment. Practice has proved that long-term use of the product stable performance, good activity, high strength.
(B) Characteristics
1, the appearance and size: slate-gray ring Rasi
2, geometry (diameter × height × diameter):
19 × 19 × 9
3, bulk density: Kg / L
1.10 ~ 1.15
4, chemical composition,% (mm)
NiO ≥ 14.00; SiO 2≤ 0.20
5, the particles radial crush strength (average), N / particle ≥ 450
(C) packaging and storage
The catalyst product packaging using to moisture, pollution of the white plastic bucket, net weight is 50Kg. Barrel outer printed clearly marked name, type, size, weight (kg), production plant name, etc., accompanied by drums packaging product quality certification. Transportation should be moisture-proof, anti-collision drop, scroll carrying prohibited. The product should be stored in a dry warehouse
|
